Chapin Tape

Chapin Tape leads the industry in providing the largest flow path, best Cv’s and greatest strength in any wall thickness of tape. Chapin has the largest selection of flow rates, wall thicknesses and inlet filtration options available today.

Product Features

Largest selection of flow rates on the market: from 0.20 gpm/100 feet to 1.8 gpm/100 feet—allowing the grower to utilize the precise amount of water for every application
Largest selection of wall thickness on the market: from 4 mil to 25 mil—allowing the grower to select the durability level they need for their toughest growing environment
Exceptional Run Length: 7/8″ Chapin drip tape will cover 1/4 mile run lengths while maintaining high emission uniformity—saving installation time and money by reducing the number of submains to properly deliver water

Unmatched uniformity: Chapin Tape consistently supplies the lowest manufacturer’s variations (Cv) in the industry
Make the right choice for your water conditions— BTF model features multiple inlet filters. Deluxe models feature continuous inlet filtration for superior resistance to clogging
Engineered extruded profile—extra thickness where it counts. Special cast extruded film pattern with rounded sides and more material on the edges reduces insect damage, mechanical abrasion and over pressurization
Unmatched variety of fittings and accessories— Jain offers the complete tape irrigation system
Easier to retrieve from field upon season completion due to cast extruded profile

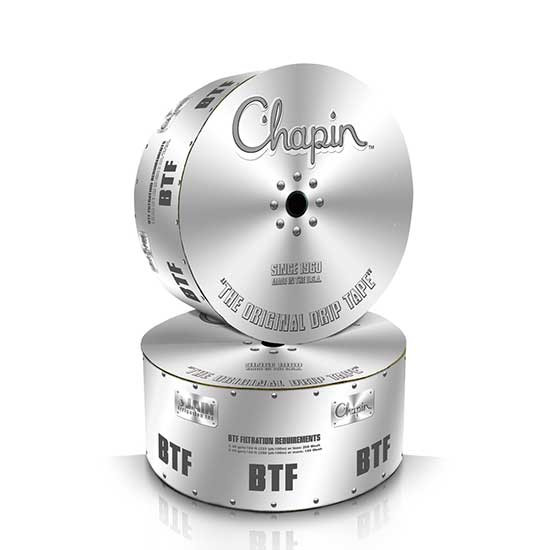

Chapin Basic Turbulent Flow—BTF

Specifications

Multiple inlet orifices ensure a continuous water flow to each dripper
Turbulent flow path design provides larger internal dimensions offering higher resistance to clogging
Largest selection of flow rates
Available in 5/8″ and 7/8″ diameters
Available wall thickness 4, 5, 6, 8, 10, 13, and 15 mil
Engineered extruded high quality polyethylene film ensures round sides providing higher resistance to insect bites and field abrasion
Slit design outlet will help prevent root intrusion and soil ingestion
Longer flow path ensures true drip flow—no squirts
A low emitter exponent will ensure less flow and pressure variation on steep slopes to help increase emission uniformity

Chapin Turbulent Flow—Deluxe

Specifications

Exclusive continuous filtration channel keeps the debris away from the flow path and allows it to purge by flushing, ensuring high performance and extends the life of the tape
Turbulent flow path design provides larger internal dimensions offering higher resistance to clogging
Exclusive continuous inlet filter (10,000 filters per 100 feet) channel offers extremely high resistance to clogging
Multiple inlet orifices ensure continuous water flow to each dripper
Slit design outlet will help prevent root intrusion and soil ingestion
Largest selection of Flow rates
Available in 5/8″ and 7/8″ diameters
Available wall thicknesses 5, 6, 8, 10, 12, 13, 15 mil
Engineered extruded high quality polyethylene film ensures round sides providing higher resistance to insect bites and field abrasion
Longer flow path ensures true drip flow—no squirts
A low emitter exponent will reduce the variation in flow as the pressure increases on steep slopes
Stringent quality checks at every stage of production and for each coil ensure a high quality product
Reinforced packaging to ensure smooth handling in the field and during transportation
